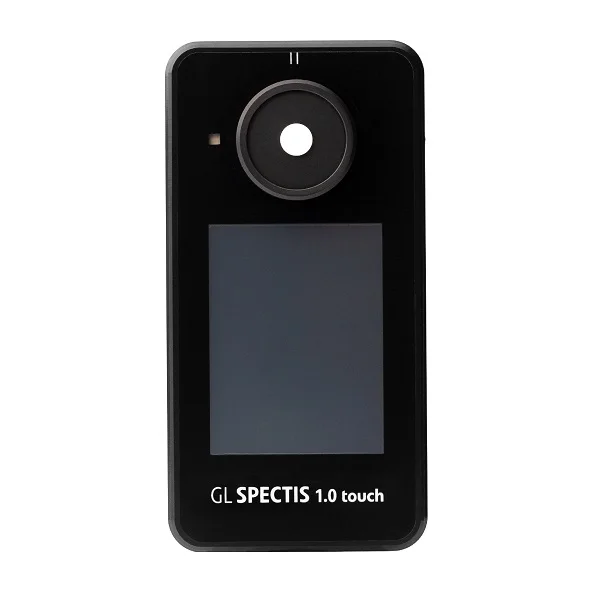

GL Spectis 1.0 Touch
The world’s first and most powerful handheld spectral light meter.
Premium spectral light meter
GL SPECTIS 1.0 Touch portable spectrometer offers unmatched performance and flexibility. With an interchangeable detector, the system can be used for wide range of applications and measurement geometries. Use in the field, the lab or both!
This intuitively-operated instrument is ideal for lamp and luminaire manufacturers, installers and lighting auditors who want to control and improve the quality of LED lighting products. From incoming component testing, through the research and development up to the final product testing and verification.
Results you can trust
Measure any light source and get the results you need. Evaluate products meet spec before you buy, develop products faster, or ensure your products are manufactured properly. GL SPECTIS 1.0 Touch can do it all.
Get the latest metrics
Keep up on the latest industry requirements and metrics with our lifetime upgrades. From standard quantities like spectrum, lux and CCT to new requirements like TM-30, PAR/PPFD and EML.
Scalable, all in one instrument
GL SPECTIS 1.0 Touch spectral meter is unlike any other handheld on the market. With a range of interchangeable accessories your SPECTIS can grow with your business from standard illuminance [lx] measurement to luminous flux [lm], and luminance [cd/m2] measurement.
Previous
Next
GL SPECTIS 1.0 Touch Usage
Reliable and flexible
GL SPECTIS 1.0 Touch was designed based on the experience gained from our original non-touchscreen model, the GL SPECTIS 1.0. Our goal was to create a spectral LED light meter for customers who wanted to have a simple solution without any sacrifice in optical performance and dependability.
This battery-operated standalone device is ideal for different light measurement applications – from the laboratory to field testing. Through extensive engineering in the design and calibration procedures, this device provides the highest accuracy of any handheld spectral light measurement device. We understand that light measurement is not an easy task, but thanks to the GL SPECTIS 1.0 Touch, you no longer need to be an expert to make professional LED lamps evaluation.
Light quality under control
This light measurement instrument is designed for those who value quality and high technology solutions. It includes many technical features and superior components offering a unique combination of laboratory accuracy and ease-of-use. It is a must have for any lighting professional looking to build its competitive advantage by improving the quality of LED lamps, modules and luminaires.
What would you like to measure?
The standard light spectrometer covers the visual range measurements of LED, OLED, CFL, discharge lamps and other light sources. Need to measure outside the visual range? Check our VIS NIR model. Use any of our additional accessories and software options for advanced applications.
GL SPECTIS 1.0 Touch Features
Self contained handheld spectrometer
GL SPECTIS 1.0 Touch spectral light meter comes in standard with Class B measuring head as a standard accessory for proper measurement of illuminance (lux). The instrument does not require a computer connection to carry out the measurements and the relevant data is immediately displayed on the color touch screen.
Automatic accessory detection
This portable spectral light meter uses a proprietary mechanism to detect which optical probe has been attached and automatically applies the correct calibration file for that accessory. This enables the user to confidently avoid measuring errors when changing accessory interfaces. The calibration meets the requirements of leading standards institutes and is confirmed with a manufacturer’s certification.
Dark current compensation
GL SPECTIS 1.0 Touch spectral light meter is ready to provide very accurate measurements for almost any lighting condition. A temperature sensor installed on the electronic board monitors changes in temperature and automatically compensates for any change in the system noise, providing excellent measurement stability.
Trigger socket
For automated or production applications, you can use the trigger socket to synchronize spectroradiometer with external systems. For example, the signal from the socket can trigger the flash of a tested lamp during measurements.
Photometric and radiometric calibration
Each system is delivered with an absolute spectral calibration with traceability to National Labs and using industry best practices. Obtain absolute values such as lux, candela and lumen together with radiometric values depending on the measurement accessory installed.
GL SPECTIS 1.0 Touch Metrics
Our preconfigured, individually calibrated spectral light meters deliver fast and precise results for nearly any practical light measurement application. Measure in seconds and review the results directly on the handheld display or dig deeper with the included software. Using the GL SPECTIS 1.0 Touch, you can measure any or all of the following optical quantities:
- Lux – irradiance
- Lumen – luminous flux
- CRI – color rendering index according to the CIE
- CCT – the color temperature according to standard CIE
- Color – the chromatic coordinates of the CIE 1931 and CIE 1964
- Fidelity and Gamut – method for evaluating light source color rendition according to TM-30 IES standard
- PAR/PPFD – handheld PAR meter displays photosynthetic active radiation measurements for horticulture
- EML – biological effects of light on humans in equivalent melanopic lux
- mWatt – radiation energy
+ many more!
Whatever your application, our precise GL SPECTIS 1.0 Touch is ideal.
GL SPECTIS 1.0 Touch Specifications
APPLICATION | |
| Natural light, LEDs, halogen light, etc. | |
LED MEASUREMENT | |
| Illuminance [lx]* | 10 – 100 000 lx (for white LED) |
| Luminance [cd/m2] | Available with optional GL OPTI PROBE |
| Luminous flux [lm] | Available with optional GL OPTI SPHERE |
| Luminous intensity [cd] | Calculated in GL SPECTROSOFT |
| Irradiance [W/m2] | 0.03 – 600 W/m² (for white LED) |
| Illuminance class | Class B – DIN 5032-7 |
| Class AA – JIS C 1609-1:2006 | |
| Tolerance – cosine response (f2‘) | < 3% (1,9 %) |
| Spectral range** | 340 – 780 nm (UVa – VIS) GL SPECTIS 1.0 Touch UVa – VIS |
| 640 – 1050 nm (VIS – NIR) GL SPECTIS 1.0 Touch VIS – NIR | |
| 340 – 750 nm (UVa – VIS) GL SPECTIS 1.0 Touch LS | |
CALCULATED VALUES | |
| CRI – Color rendering index according to CIE | Ra, R1 – R14 |
| TM-30-15 | Rf, Rg, Colour Vector Graphic |
| CCT – Correlated color temperature according to CIE 13.3 | ✓ |
| Color peak | ✓ |
| Color dominant | optional with GL SPECTROSOFT |
| Color position coordinates [x,y] according to CIE 1931 | ✓ |
| Color position coordinates [u‘,v‘] according to CIE 1976 | ✓ |
| Color position coordinates [u, v] according to CIE 1960 | ✓ |
| PAR/PPFD | ✓ |
| Color coordinate error | optional with GL SPECTROSOFT |
| Metameric index | optional with GL SPECTROSOFT |
| Binning | optional with GL SPECTROSOFT |
| Assessment in accordance with ISO 3664 | ✓ |
PHOTOMETRY / RADIOMETRY | |
| Sensor | CMOS image sensor |
| Number of pixels | 256 |
| Physical resolution / datapoint interval | ~ 1.7 nm |
| Wavelength reproducibility | 0.5 nm |
| Integration time | 5 ms – 10 s |
| A/D converter | 16 bit |
| Signal-to-noise ratio | 1000:1 |
| Stray light | 2*10 E-3 |
| Optical resolution / FWHM | 10 nm |
| Radiometric accuracy***/**** | 5% within range 340 – 500 nm |
| 4 % within range 500 – 1050 nm | |
| Flicker compensation | ✓ |
| Temperature sensor and dark current compensation | ✓ |
| Uncertainty of color coordinates*** | 0.0015 |
| Automatic accessory detection | ✓ |
GENERAL PROPERTIES | |
| Operating System | Android |
| Power supply via USB connector | < 640 mA |
| Power adapter | Power supply unit 100…240 V (50/60 Hz) 0,15 A |
| Battery / Power pack | lithium-polymer battery 3500 mAh |
| Automatic shut-off | ✓ |
| Battery life | up to 6 h***** |
| Operating temperature | 5 – 35°C |
| Dimensions [H x W x D] | 74.5 mm x 145.5 mm x 36.6 mm (with standard diffusor) |
| Weight | 349 g |
| Tripod adapter | ✓ |
INTERFACE & MEMORY | |
| USB | USB 2.0 |
| Trigger | Open collector, minijack 3.5 mm, 3-pin |
| SD card slot | microSD 16GB |
| Measurement result storage | Auto / 4GB microSD |
| Data format | XML |
| Fiber optic connector | Optional SMA905D |
DISPLAY & OPERATION | |
| Display | 3.5“ color LCD (240 x 320 px) |
| Operation | Touch Screen, PC / Notebook |
SOFTWARE | |
| Software | Optional GL SPECTROSOFT Basic / Pro / Lab |
ORDERING INFORMATION | |
| Case | ✓ |
| Battery | ✓ |
| USB cable | ✓ |
| Power supply | ✓ |
| Leash | ✓ |
| Display protection foil | ✓ |
| 4GB microSD card | ✓ |
* Dynamic range is spectrum related and should be calculated separately for any light source. Estimated dynamic range for typical 4000 K white LED. Range estimated for optical system made to default specification. Alterations of that are often possible. Please consult technical support if you are looking for specific parameters.We advise to contact GL Optic before the use of the product to obtain the latest product specification.
** Spectral range of the sensor. Actual spectral range of system may be reduced due to limitations of used optical accessory.
*** Absolute measurement uncertainty immediately after calibration. The expanded uncertainty corresponds to a coverage probability of 95% and the coverage factor k = 2.
Parameters valid in laboratory conditions 25°C, relative humidity 45%.
**** Applies only within the spectral range of the given model.
Note: Instrument, firmware and software specification are subject to change without prior notice. All information included in GL OPTIC datasheets and product information available in any form are carefully prepared and included information believed to be true. Please note that discrepancies may occur due to text and/or other errors or changes in the available technology. We advise to contact GL Optic before the use of the product to obtain the latest product specification.
Below you will find materials ready for download. Click on the file that interests you to download it.
More than just a handheld
Accessories for a range of applications

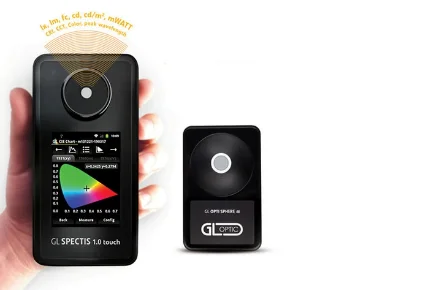

Spectral LED tester
Simple way to turn your illuminance spectrometer into the single LED tester to measure luminous flux and color CRI and TM30 rendering properties of LEDs. Install the GL OPTI SPHERE 48 which mounts directly on the device and measure. This can be used as portable set but also can be installed in the lab or production for quick and precise LED testing.

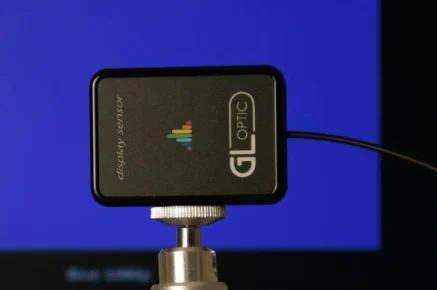

Display and OLED testing
Any flat light emitting surface can be measured with GL SPECTIS 1.0 Touch when you use optional GL OPTI PROBE 1.0 for luminance and radiance. This accessory connects to the spectrometer with fiber optic connection and can be installed on a tripod at a distance from the test device or put directly on the LED or OLED surface to measure [cd/m2], SPD and radiance.

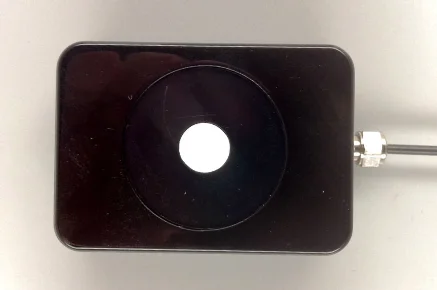

Under water LED light testing
If you are developing or distributing Aquarium LED lighting you can connect our LED light meter with optional water tight probe design for evaluation of lighting installations dedicated to submarine, aquarium or other underwater technical lighting.
Effective irradiance metrics
Horticulture or agriculture lighting applications you can use our spectral light and PAR meter to evaluate any effective irradiance values. Onboard firmware can calculate PAR, PPFD and other critical parameters of modern specialized LED lighting installations. Connect to our GL SPECTROSOFT M tool for advanced analysis options.
Highest quality sensors and components
