GL SPECTIS 1.0
The world’s most flexible USB spectrometer. Exceptional accuracy and repeatability in the palm of your hand.
Precise light measuring technology
This high-quality and easy to operate device gives you all you need for reliable light measurement. Implementing this practical instrument in your development and production environments can help you improve the light quality of your product and accelerate development.
With its coded and interchangeable measurement head, GL SPECTIS 1.0 can be combined with optical probes, integrating spheres or goniometers to measure any type of light sources, displays as well as LED lights. Thanks to its high sensitivity and accuracy, it is the perfect solution for light measurement.
Compact yet powerful
Don’t let the small size fool you. GL SPECTIS 1.0 handheld spectroradiometer can measure any light source and provide the results you need. Evaluate products meet spec before you buy, develop better products faster, or ensure your products are manufactured properly. GL SPECTIS 1.0 can be configured to do it all.
Versatile spectroradiometer
Depending on your application you can use this handheld spectroradiometer as an illuminance / irradiance meter when you connect it to your PC, you can plug it to a small integrating sphere for single LEDs color and lumen measurements or combine it with a larger integrating sphere for the testing of luminous flux and efficacy of LEDs. Luminance testing is also possible with the use of dedicated ADDITIONAL PROBES.
Cost effective
GL SPECTIS 1.0 is a measuring device suitable for the final assessment of lamps as well as for testing of complete lighting installations. Combining high accuracy and low cost, it is an excellent instrument choice for common LED measurement applications.
Previous
Next
GL SPECTIS 1.0 Usage
Handheld spectroradiometer
GL SPECTIS 1.0 handheld spectroradiometer was developed to allow consultants outside the laboratory to verify the quality of light, but providing a portable, dependable and repeatable light measurement device. Our design focus was simple – to provide lighting professionals with a practical device they could trust. No need to send everything to the main laboratory for testing when you need to measure and decide on site.
Based on Hamamatsu sensor
This device is equipped with the Hamamatsu sensor to provide stability, low noise electronic to increase its dynamic range, temperature sensor to monitor and compensate for the dark current shift. We added the system of interchangeable accessories to support different types of measurements. Finally, it is equipped with a precisely designed measurement head to provide reliable lighting measurement. Initially used as a handheld device, despite its small size, it is a powerful instrument which becomes a part of many different light measurement systems we provide today.
GL SPECTIS 1.0 Features
Ideal for LEDs measurements
The GL SPECTIS 1.0 spectrometers optical system uses a miniature collimating lens with nano-imprint of diffraction lines and a CMOS image sensor working in the range of 340-780 nm. It is a miniature low stray light system providing a 1.7 nm data acquisition interval which is ideal for the measurement of LEDs, OLEDs and other light sources in the visual range.
Low noise, high speed data
The electronic board ensures the proper speed of data transfer and very low noise. The temperature sensor installed on the board monitors the change of the ambient temperature and its influence on the measurement stability.
Software corrections
The SP-X driver software includes any necessary correction procedures to reduce stray light, bandpass error, noise level and background level to achieve the best spectra representation and highest measurement accuracy. The data acquired are calculated according to CIE norms to obtain the right color calculation for LED and other light sources.
GL SPECTIS 1.0 Metrics
Our preconfigured, individually calibrated spectral light meters deliver fast and precise results for nearly any practical light measurement application. Measure in seconds and review the results directly on the handheld display or dig deeper with the included software. Using GL SPECTIS 1.0, you can measure any or all of the following optical quantities:
- Lux – irradiance
- Lumen – luminous flux
- CRI – color rendering index according to the CIE
- CCT – the color temperature according to standard CIE
- Color – the chromatic coordinates of the CIE 1931 and CIE 1964
- Fidelity and Gamut – method for evaluating light source color rendition according to TM-30 IES standard
- PAR/PPFD – photosynthetic active radiation measurements for horticulture
- EML – biological effects of light on humans in equivalent melanopic lux
- mWatt – radiation energy
+ many more!
Whatever your application, our precise GL SPECTIS 1.0 is up to the task.
GL SPECTIS 1.0 Specifications
APPLICATION | |
| Natural light, LEDs, halogen light, etc. | |
LED MEASUREMENT | |
| Illuminance [lx]* | 10 lx … 100 000 lx (GL SPECTIS 1.0) |
| 10 lx … 100 000 lx (GL SPECTIS 1.1) | |
| – (GL SPECTIS 1.2) | |
| 5 lx … 50 000 lx (GL SPECTIS 1.3) | |
| Luminance [cd/m2] | Available with optional GL OPTI PROBE |
| Luminous flux [lm] | Available with optional GL OPTI PROBE |
| Luminous intensity [cd] | Calculated in GL SPECTROSOFT |
| Illuminance class | Class B – DIN 5032-7 |
| Class AA – JIS C 1609-1:2006 | |
| Tolerance – cosine response (f2‘) | < 3% (1.9 %) |
| Spectral range** | 340 – 780 nm (UVa – VIS) (GL SPECTIS 1.0) |
| 340 – 780 nm (UVa – VIS) (GL SPECTIS 1.1) | |
| 640 – 1050 nm (VIS – NIR) (GL SPECTIS 1.2) | |
| 340 – 750 nm (UVa – VIS) (GL SPECTIS 1.3) | |
PHOTOMETRY / RADIOMETRY | |
| Sensor | CMOS image sensor |
| Number of pixels | 256 |
| Physical resolution / datapoint interval | ~ 1.7 nm |
| Wavelength reproducibility | 0.5 nm |
| Integration time | 5 ms – 10 s |
| A/D converter | 16 bit |
| Signal-to-noise ratio | 1000:1 |
| Stray light | 2*10 E-3 |
| Optical resolution / FWHM | 10 nm |
| Radiometric accuracy ***/**** | 5% within range 340 – 500 nm |
| 4% within range 500 – 1050 nm | |
| Flicker compensation | ✓ |
| Temperature sensor and dark current compensation | ✓ |
| Uncertainty of color coordinates *** | 0.0015 |
| Automatic accessory detection | ✓ |
GENERAL PROPERTIES | |
| Power supply via USB connector | < 640 mA |
| Operating temperature | 5 – 35°C |
| Dimensions [H x W x D ] | 62 mm x 115 mm x 28,3 mm (with standard diffuser) |
| Weight | 125 g |
| Tripod adapter | ✓ |
INTERFACE & MEMORY | |
| USB | USB 2.0 |
| Measurement result storage | by GL SPECTOSOFT |
| Trigger | Available with GL SPECTIS 1.1 |
| Open collector, minijack 3.5 mm, 3-pin | |
| Data format | XML |
SOFTWARE | |
| Software | Optional GL SPECTROSOFT Basic / Pro / Lab |
ORDERING INFORMATION | |
| Case | ✓ |
| USB cable | ✓ |
* Dynamic range is spectrum related and should be calculated separately for any light source. Estimated dynamic range for typical 4000 K white LED. Range estimated for optical system made to default specification. Alterations of that are often possible. Please consult technical support if you are looking for specific parameters.
** Spectral range of the sensor. Actual spectral range of system may be reduced due to limitations of used optical accessory.
*** Absolute measurement uncertainty immediately after calibration. The expanded uncertainty corresponds to a coverage probability of 95% and the coverage factor k = 2. Parameters valid in laboratory conditions 25°C, relative humidity 45%.
**** Applies only within the spectral range of the given model.
Note: Instrument, firmware and software specification are subject to change without prior notice. All information included in GL OPTIC datasheets and product information available in any form are carefully prepared and included information believed to be true. Please note that discrepancies may occur due to text and/or other errors or changes in the available technology. We advise to contact GL Optic before the use of the product to obtain the latest product specification.
Below you will find materials ready for download. Click on the file that interests you to download it.
More than just a handheld
Accessories for a range of applications

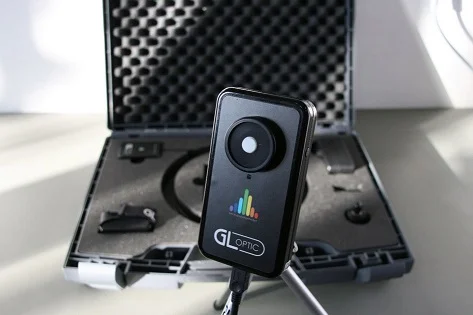

Illuminance and irradiance
This handheld spectroradiometer is calibrated to provide absolute values of illuminance and color but also provides detailed spectral power distribution and irradiance values [mW/m2]. Use this on optical bench or tripod to create a measurement setup connected to PC.

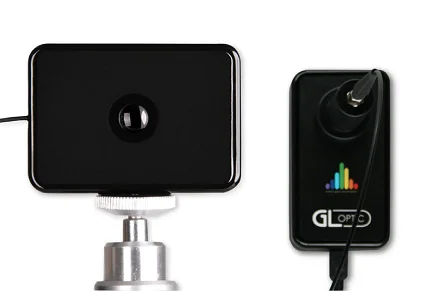

Luminance and radiance
Available luminance optical probes can be connected and calibrated with this handheld spectroradiometer to measure flat emitting surfaces like displays, screens and back lights. The integrated coding system in all spectrometers automatically downloads the appropriate calibration file and measures [cd/m2]. Check available ADDITIONAL PROBES for Luminance and Illuminance.

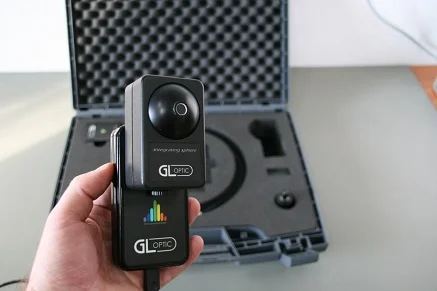

Luminous flux of single LEDs

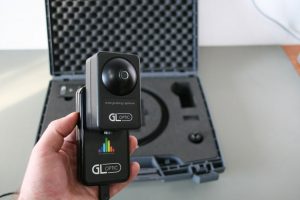

Connect this handheld spectroradiometer with our GL OPTI SPHERE 48 to measure luminous flux (lumen) and color of single LEDs. This is ideal for incoming QC and evaluation of LEDs, drivers and other components during development.

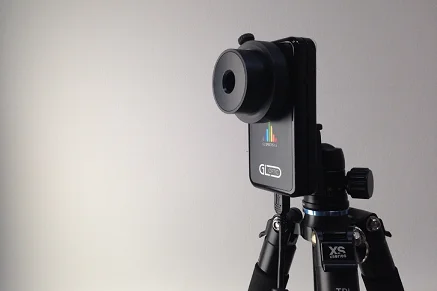

Light intensity distribution
Pair this universal light measurement spectrometer with our small GLG 8-850 goniometer or the large GLG 30-1800 system for accurate LED lighting measurements and get photometric files and colorimetric data at once.
Related products
GL SPECTROSOFT M
GL SPECTROSOFT M is an analytical PC-based software designed for laboratory applications, field work, production quality control and for general light assessment purposes.
GL OPTI SPHERE 500
Complete integrating sphere solution for luminous flux and radiant power measurement of LED retrofit lamps.

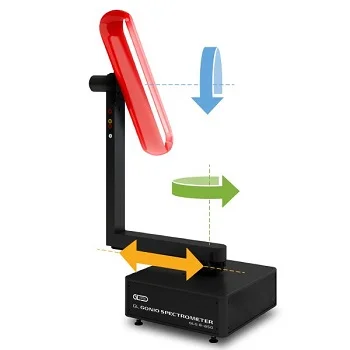

GL GONIO SPECTROMETER GLG 8-850
