GL Spectis 1.0T Flicker

Flicker measurement simplified

Light Spectrometer for immediate evaluation of illuminance, color and flicker metrics in one device

Spectis 1.0 Touch Flicker Light Spectrometer

The Ultimate Portable Light Spectrometer

An upgraded version of the very successful Spectis 1.0 Touch spectral light meter, this new variant takes portable light measurement to a new level. This innovative new light spectrometer instrument can now measure flicker of light in addition to the extensive range of standard photometric and colormetric values available on the Spectis 1.0 Touch for color and intensity…all within seconds.

The Spectis 1.0 Touch light flicker meter is now equipped with additional electronics and fast photodiode to measure flicker frequency, flicker index and flicker ratio. Designed and developed in consultation with industry leaders and standards committees, this device provides all the measurement quantities required to accurately measure and understand flicker.

Download Flyer Get Quote

Tommorrow’s Metrics, Today

Stay ahead of the competition by incorporating flicker measurements in your suite of optical testing. While still only an emerging requirement in many areas, characterizing flicker will soon become the norm. New metrics like SVM and California Title 24, we have it covered!

A True All-in-One Instrument

Why use multiple measurement devices to characterize your light when it can all be captured with a single portable light spectrometer. Less devices to carry, and less reports to combine. Get it all with the push of a button. Use it to collect spectral and flicker data in the lab or field. Need additional analysis or reporting capabilities? Use our optional Spectrosoft Analysis Suite

Flexibility Re-Defined

The Spectis 1.0 Touch light flicker meter offers a great standalone solution, but can also be paired with a range of accessories. From integrating spheres to goniometers, in the lab or the field, this system has you covered. Configure the system to measure illuminance, flicker metrics or luminous flux and even luminance of LEDs using an optional optical probe.

More Than Just a Handheld

Accessories for a range of applications

Illumination and Irradiance Meter

Human Centric Metrics

Measure lighting installation to check illumination [lx], CCT, CRI, TM 30-15 flicker index, flicker percent and the SVM for visual effects along with the circadian metrics like EML and S/P ratio.

Luminous Flux of Single LEDs

TV and Studio Light Flicker

Use our GL Spectis 1.0 Touch light spectrometer + Flicker to measure very high frequencies up to 12 kHz which are important for broadcasting and studio lighting evaluation. This will also include CCT, CRI AND TLCI indices verified.

Luminance and Radiance Meter

Flux and color of LEDs

Connect with our GL Opti Sphere 48 to measure flux and color of single LEDs. This set supports binning verification and quality control during development and incoming QC of LEDs, drivers and other components.

Luminance and Radiance Measurement

Luminance and Radiance

Available luminance optical probes can be connected and calibrated with our device to measure flat emitting surfaces like displays, screens and back lights. Coding system inteled in our spectrometer will automatically download calibration file and measure cd/m2 Check available OPTI PROBES.

GL SPECTIS 1.0 Touch Flicker Usage

Every Important Metric, One Device

When the first “flicker-free” football stadium lighting was installed at Chelsea Arena in the UK, GL Optics was asked to provide a device which could be used as an auditing tool to check the newly installed lighting. The contractor needed to evaluate the photometric and colorimetric values including illumination (lx), color temperature (CCT), color rendering properties of LED (CRI), television index (TI) and additionally verify if it was a flicker-free installation.

This project triggered the development of the Spectis 1.0 Touch Flicker, improving on our existing GL Spectis 1.0 Touch by integrating an additional electronic circuit board with the fast photodiode to capture the optical flicker characteristics. The result is possibly the best hand-held flicker spectroradiometer on market. Covering an exceptional wide range of frequencies with accuracy equal to some laboratory devices.

GL Optic takes an active part in a Philips Working Group which is focused on establishing new flicker metric standards throughout the industry. Thanks to this direct cooperation we have an opportunity to compare and evaluate our accuracy daily using the reference standard provided by Philips. We are also able to include the latest flicker metrics like Flicker Index, Flicker Percent and the Flicker Ratio together with the latest SVM (Stroboscopic Visibility Measure) – a new standard to assess how the lighting installation might influence human visibility performance.

The GL Spectis 1.0 T Flicker meter is an intuitively operated touch screen portable light spectrometer, equally suited to the lab as it is in the field. With a range of software analysis capabilities and extensive suite of accessories, this device is in a category all its own.

GL Spectis 1.0 T Flicker Meter Features

Reliable, precise and intuitively operated spectral instrument

The Spectis 1.0 Touch Flicker meter delivers reliable and accurate optical performance, and intuitively operated spectral instrument for light measurement. Dependable light assessment is no longer restricted to only experts or external laboratories. Our preconfigured, individually calibrated measurement instruments deliver fast and precise results, and the included software includes extensive analysis and automation capabilities that deliver the results that matter.

Spectral and Photodiode Measurement

GL Optic light spectrometers are designed and preconfigured for light measurement applications. The B class cosine corrected measurement head is a standard accessory allowing for precise measurement of light. Now, with the addition of a photodiode placed next to the standard diffusor with fast readout electronics, optical flicker signal response is captured at the same time. Directly on the touch screen you can check the values and the graph showing the wave shape, height and frequency and you can even zoom in to check details. Extended analytical and reporting capabilities are possible with the optional GL Spectrosoft PRO license.

Plus all of the core features of the Spectis 1 Touch:

  • Self Contained Handheld Spectrometer
  • Automatic Accessory Detection
  • Dark current compensation
  • Trigger Socket
  • Photometric and Radiometric calibration

GL SPECTIS 1.0 T Flicker Meter Metrics

Measure light output and color together

  • spectral power distribution SPD
  • illumination: lux or fcd
  • irradiance: mWatt
  • color: CRI, CCT, x,y,

And optical flicker metrics like:

  • Flicker Frequency,
  • Flicker Index
  • Flicker Ratio
  • SVM (Stroboscopic Visibility Measure)
  • Flicker Graph and FFT Graph available

Plus many more! Contact us for a full list of light meter metrics.

GL SPECTIS 1.0 T Flicker Meter Specifications



Measuring signal frequency range 0.1 Hz to 12.5 kHz
Sampling rate 125 kHz (10x max. measured frequency)
Flicker illuminance 0.1 lx – 15,000 lx
Calculated parameters flicker index, flicker percentage, dominant frequencies
Visualization of signal as time series and in frequency domain
(Fast Fourier Transformation – FFT)
Additional metrics, as standards evolve, are incorporated as firmware updates

Spectral Specifications

Spectral range 340 – 780 nm
Illuminance* 1 – 200,000 mW/m²
Irradiance 0.03-1200 W/m²
Luminous flux (with GL OPTI SPHERE 48) 0.015 – 150 lm
Radiant power (with GL OPTI SPHERE 48) 0.03 – 500 mW
Luminance (with GL OPTI PROBE 1.0.10 LUMINANCE) 10 – 400,000 cd/m²
Physical resolution ~ 1.7 nm
Wavelength reproducibility 0.5 nm

*Measurement below 5 lx may require customization to obtain noted specification. Please discuss with technical sales.

Note: Instrument, firmware and software specification are subject to change without prior notice. All information included in GL OPTIC datasheets and product information available in any form are carefully prepared and included information believed to be true. Please note that discrepancies may occur due to text and/or other errors or changes in the available technology. We advise to contact GL Optic before the use of the product to obtain the latest product specification.

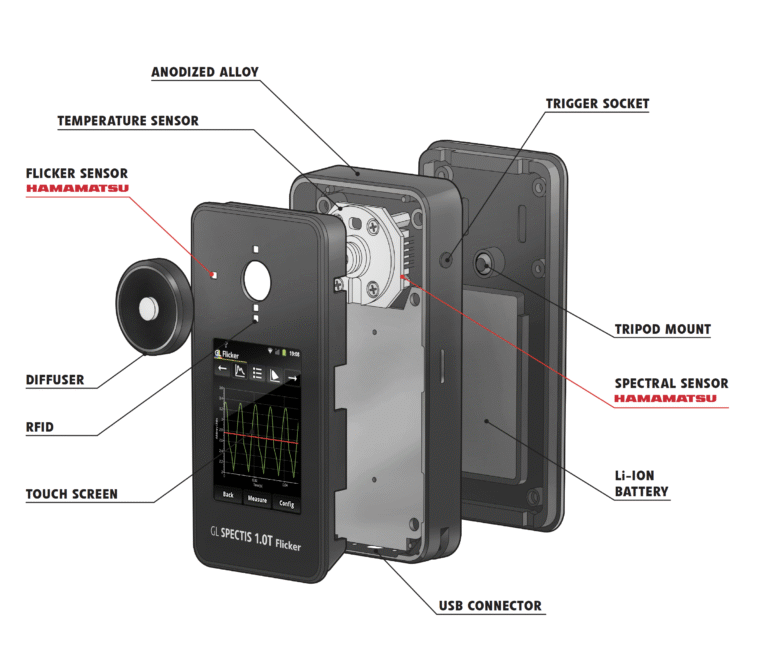

Highest Quality Sensors and Components


Spectis 1.0 Touch Flicker meter
